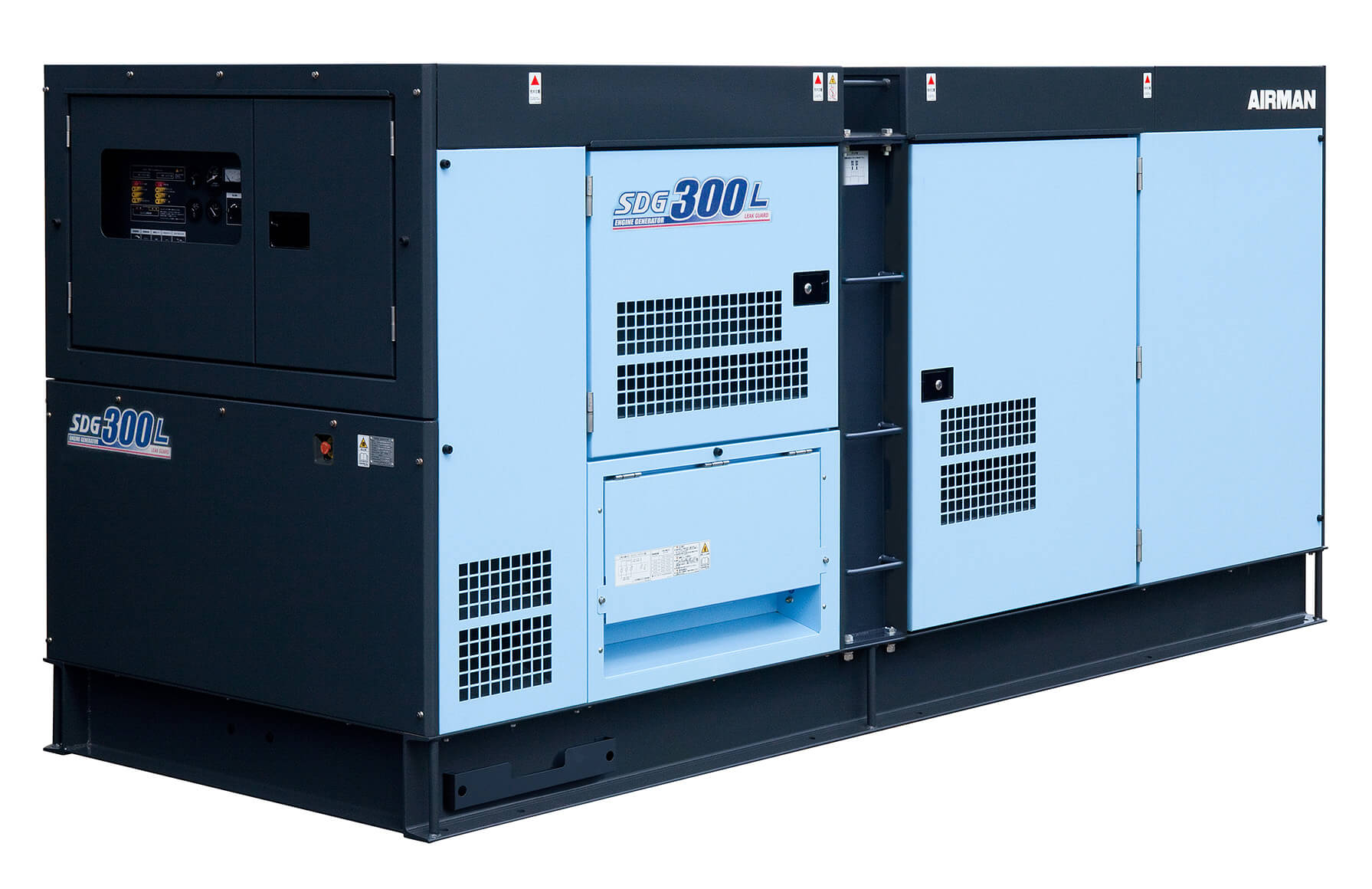

SDG300L-5B1
SDG300L-5B1
GENERATOR
- Type Dual Voltage (Manual parallel)
- Frequency (Hz) 50 / 60
- 3-phase 4 wires
- Prime Output (kVA) 270 / 300
- Stanby Output (kVA) 216 / 240
- Voltage (V) 200/400 / 220/440
- Current (A) 779/390 / 787/394
- Single-phase auxiliary output
- Voltage (V) 100 / 110
- Dedicated terminals (kVA)
- Outlets (kVA) 1.5×2 / 1.65×2
- Power factor (%) 3-phase 80 (lagging) / Single-phase 100
ENGINE
- Make, Model KOMATSU SAA6D125E-5-B
- Type Direct-Injection, Turbo-Charged, Intercooled
- Rated output (kW) 234 / 259
- Rated output (PS) 318 / 352
- Rated speed (min-1) 1500 / 1800
- Fuel tank capacity (L) 490
- Engine oil amount (L) 61
- Battery × quantity 170F51×2
DIMENSION & WEIGHT, etc
- L×W×H (mm) 4000×1500×1850
- Dry weight (kg) 4510
- Operating weight (kg) 5020
- Sound power level in decibels (dB) 93 / 98
- Sound pressure level (dB[A]) 65 / 69
- Designated emissions regulation JPN Stage 3
- Volume allowance (L) 607
- Oil level at alarm lump (L) 220
●Specifications are subject to change without notice.
