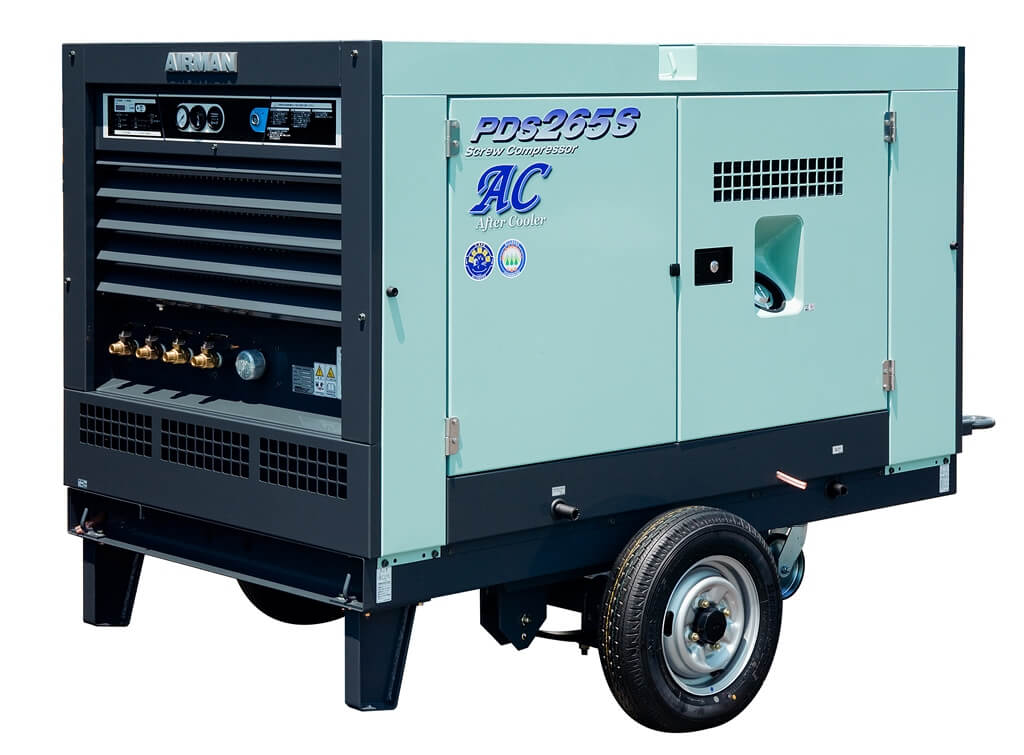

PDS265SC-4B2
PDS265SC-4B2
COMPRESSOR
- Type Rotary Twin Screw, Single-Stage, Oil-cooled
- Free air delivery (m3/min) 7.5
- Rated operating pressure(MPa)[kgf/cm2][psi]0.69[7.0][100]
- Compressor capacity (L)30
- Discharge Air Temperature (℃)
- Atmospheric Temperature＋20
- Air outlet valve3/4″×4, 2″×1(OP)
ENGINE
- Make/ModelYANMAR 4TNV98T-NHK
- TypeDirect-Injection, Turbo-Charged
- Rated output (kW/min-1)[PS/rpm]61.2/2500[83.2/2500]
- Engine oil capacity (L)10.5
- Fuel tank capacity (L)115
- Battery95D31R×1
DIMENSION & WEIGHT
- L×W×H (mm)2980×1630×1715
- Dry (Operating) weight (kg)1380(1520)
- Tire Size6.50-14 8PR×2W
- Sound power level in decibels (dB)98
- Sound pressure level (dB[A])69
- Designated emissions regulationJPN Stage 2
Specifications are subjected to change without any notices.
